What is CI Casting?

CI casting refers to “Cast Iron casting,” which is a manufacturing process used to produce cast iron components or parts. Cast iron is a strong, brittle, and relatively inexpensive material with excellent casting properties, making it suitable for a wide range of applications.

CI Casting In the Context of Utilities

CI casting plays a significant role in the production and distribution of various utility systems. Utility systems encompass infrastructure networks that deliver essential services such as water, gas, and electricity to residential, commercial, and industrial areas.

CI casting is commonly used in the following utility applications:

1. Water Distribution: Cast iron pipes and fittings are extensively utilized in water distribution networks. They are known for their durability, corrosion resistance, and ability to withstand high-pressure conditions.
2. Sewer Systems: CI casting is employed in the construction of sewer pipes and manhole covers. The strength and corrosion resistance of cast iron make it suitable for underground applications where it comes into contact with wastewater and other corrosive substances.
3. Gas Distribution: Cast iron pipes are also used in natural gas distribution systems. They provide a reliable and durable means of transporting gas from the main supply to residential and commercial areas.
4. Power Generation: CI casting finds its application in power generation plants, especially in the construction of turbines, generators, and other machinery components. Cast iron’s heat resistance and mechanical properties make it suitable for handling high temperatures and heavy loads.

In summary, CI casting is a manufacturing process used to produce cast iron components, and it relates to utilities by providing essential infrastructure elements for water distribution, sewer systems, gas distribution, and power generation.

CI Casting in Water and Sewer Systems

CI casting is widely utilized in water distribution and sewer systems due to the specific properties of cast iron that make it suitable for these applications. Here’s some more information about CI casting use in water distribution and sewer systems:

Water Distribution:

1. Durability: Cast iron pipes used in water distribution networks are highly durable and can withstand significant external pressures and stresses. They are designed to handle varying soil conditions and can withstand heavy traffic loads.
2. Corrosion Resistance: Cast iron is naturally resistant to corrosion, which is important in water distribution systems where pipes come into contact with water and other corrosive substances. This resistance helps extend the lifespan of the pipes and reduces maintenance and replacement costs.
3. Smooth Internal Surface: CI pipes have a smooth internal surface, which minimizes friction and ensures efficient water flow. This characteristic is crucial for maintaining adequate water pressure throughout the distribution system and reducing energy losses.
4. Leakage Reduction: Cast iron pipes have tightly sealed joints that minimize the risk of leakage. This is essential for maintaining the integrity of the water distribution system, conserving water resources, and preventing waterborne diseases.

Sewer Systems:

1. Strength: Cast iron pipes used in sewer systems are exceptionally strong and capable of handling heavy loads and pressures. They can withstand the weight of the soil above them without deformation or collapse.
2. Corrosion Resistance: Sewer systems often contain corrosive substances and wastewater. Cast iron’s inherent resistance to corrosion makes it a suitable choice for sewer pipes and fittings, ensuring their longevity and minimizing maintenance requirements.
3. Sound Dampening: Cast iron pipes exhibit excellent sound dampening properties, reducing the noise generated by flowing wastewater within the sewer system. This feature is particularly beneficial in urban areas where noise pollution needs to be minimized.
4. Fire Resistance: Cast iron is a non-combustible material and can withstand high temperatures. This makes it a safe choice for sewer systems, as it can resist fire and prevent the spread of flames in case of an incident.

Overall, CI casting provides durable, corrosion-resistant, and robust components for water distribution and sewer systems. Its properties contribute to the reliability, longevity, and efficiency of these essential utility networks.

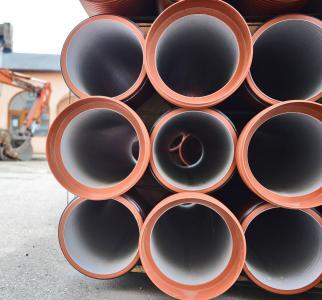

Ductile Iron Pipe (DIP)

Ductile iron pipe (DIP) is commonly used for various applications in underground utilities, primarily for the transportation of water and sewage. Here are some of the common uses and features of ductile iron pipe:

1. Water Distribution: Ductile iron pipe is widely used for water distribution systems, both for potable (drinking) water and non-potable water. Its high strength, durability, and corrosion resistance make it suitable for carrying water over long distances and under varying operating conditions.
2. Sewer and Wastewater Systems: Ductile iron pipe is also utilized for sewer and wastewater systems. It can handle the transportation of sewage, industrial wastewater, and stormwater effectively. The material’s corrosion resistance and structural integrity are crucial in these applications to ensure the safe and efficient flow of wastewater.
3. Pumping Stations and Treatment Plants: Ductile iron pipe is often employed in pumping stations, water treatment plants, and wastewater treatment facilities. It is used to connect various components such as pumps, valves, and tanks, ensuring the proper flow and management of water or wastewater within these facilities.
4. Fire Protection Systems: Ductile iron pipe is commonly used in fire protection systems, such as fire hydrants and sprinkler systems. Its robustness and ability to withstand high-pressure conditions make it suitable for delivering water to combat fires effectively.
5. Industrial Applications: Ductile iron pipe finds application in various industrial settings, including mining, power generation, and chemical processing. It is used for transporting liquids, slurries, and corrosive substances in industrial processes that require a durable and reliable piping system.

Ductile iron pipe offers several advantages for these applications, including its high tensile strength, impact resistance, and flexibility. It can withstand external loads, such as soil pressure, and is less susceptible to damage from ground movement or settlement compared to other materials. Additionally, its corrosion resistance and long service life contribute to cost-effectiveness and reliability in underground utility systems.

Proper installation techniques, such as joint assembly and trenching methods, are critical to ensure the integrity and longevity of ductile iron pipe systems. Compliance with industry standards and regulations, along with routine inspection and maintenance, is essential to maintain the efficiency and reliability of the piping infrastructure.

Ductile Iron Pipe in Underground Utilities

Ductile iron used in underground utilities, often referred to as ductile iron pipe (DIP), typically contains the following components:

1. Iron (Fe): Iron is the primary component of ductile iron, accounting for the majority of its composition. It provides the structural strength and durability required for underground applications.
2. Carbon (C): Carbon content in ductile iron is typically between 3.2% and 3.6%. This higher carbon content compared to other types of cast iron contributes to its increased strength and ductility.
3. Silicon (Si): Silicon is added to ductile iron as an alloying element, usually in the range of 1.8% to 2.8%. Silicon enhances the fluidity of the molten iron during casting and helps form graphite nodules, which impart ductility to the material.
4. Manganese (Mn): Manganese is often present in ductile iron, typically ranging from 0.1% to 0.4%. It helps promote the formation of graphite nodules and improves the material’s strength and wear resistance.
5. Magnesium (Mg): Magnesium is added in small amounts, usually around 0.03% to 0.06%, as a nodulizing agent. It reacts with the sulfur and oxygen present in the iron to form magnesium sulfide and magnesium oxide, respectively. This process helps create the desired graphite nodules, giving ductile iron its ductility and improved mechanical properties.
6. Trace Elements: Ductile iron may also contain trace amounts of other elements such as copper, nickel, chromium, and molybdenum. These elements can be intentionally added or can be present as impurities from the raw materials used in the production process. The presence of trace elements can influence specific properties or provide resistance to corrosion and other environmental factors.

The composition of ductile iron used in underground utilities is carefully controlled to ensure optimal properties, including high tensile strength, excellent corrosion resistance, and the ability to withstand internal and external pressure. The combination of iron, carbon, silicon, manganese, magnesium, and trace elements results in a material with superior strength, durability, and flexibility, making it well-suited for applications such as water and sewage pipelines.

Components of Cast Iron

The primary components of cast iron are iron (Fe) and carbon (C). However, cast iron may also contain other elements in smaller amounts, which can affect its properties. The typical components found in cast iron include:

1. Iron (Fe): Iron is the primary component of cast iron, usually comprising over 90% of its composition. It provides the material’s structural strength and base properties.
2. Carbon (C): Carbon is a crucial component in cast iron, typically present in a range of 2% to 4%. The carbon content distinguishes cast iron from other forms of iron and gives it its unique properties, such as hardness and brittleness.
3. Silicon (Si): Silicon is commonly added to cast iron as an alloying element. It improves the fluidity of the molten iron, aiding in the casting process. Silicon also contributes to the formation of graphite, which enhances the machinability and wear resistance of cast iron.
4. Manganese (Mn): Manganese is often added to cast iron to promote graphite formation and improve its mechanical properties. It helps in reducing the formation of harmful impurities, such as sulfur and oxygen, during the casting process.
5. Sulfur (S) and Phosphorus (P): These elements are considered impurities in cast iron and are typically kept at low levels. Sulfur can cause brittleness, while phosphorus can negatively affect the material’s strength and toughness.

It’s important to note that different types of cast iron, such as gray iron, white iron, ductile iron, and malleable iron, may have variations in their composition and the presence of additional alloying elements. These variations result in different properties and applications for each type of cast iron.

Cast Iron Use Past to Present

Cast iron has been used for centuries, and its origins can be traced back to ancient China. The earliest evidence of cast iron dates back to the 5th century BC during the Zhou Dynasty in China. The Chinese were able to develop cast iron by melting iron ore in a furnace and then pouring the molten iron into molds. This early form of cast iron was relatively brittle and not as refined as modern cast iron.

Over time, the production and use of cast iron spread to other parts of the world. In the 14th century, cast iron production techniques began to evolve in Europe, particularly in England. The use of water-powered blast furnaces allowed for larger-scale production of cast iron.

During the Industrial Revolution in the 18th and 19th centuries, the production of cast iron increased significantly as new technologies and methods were developed. The invention of the coke-fueled blast furnace and the Bessemer process for mass-producing steel further advanced the production and use of cast iron.

Throughout history, cast iron has been utilized in a wide range of applications, including cookware, construction materials, machinery, and transportation infrastructure. Its strength, durability, and casting properties made it a valuable material for industrial and domestic purposes.

Today, cast iron continues to be used in various industries, and cast iron cookware remains popular for its excellent heat retention and cooking properties. Although the use of cast iron has evolved and new materials have emerged, its long history and enduring qualities have solidified its place as an important material in manufacturing and construction.
